Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System

Thông tin chi tiết sản phẩm:

Nguồn gốc: Dongguan, Trung Quốc
Hàng hiệu: W-Mate
Chứng nhận: SGS
Số mô hình: 2024062203

Thanh toán:

Số lượng đặt hàng tối thiểu: 1000 CÁI
Giá bán: negotiable
chi tiết đóng gói: Túi PE + túi PP + thùng carton (nếu bạn có yêu cầu khác, vui lòng liên hệ với chúng tôi)
Thời gian giao hàng: 10-15 ngày làm việc
Điều khoản thanh toán: T/T, Công Đoàn Phương Tây
Khả năng cung cấp: 100.000pcs/tháng
Giá tốt nhất Tiếp xúc

Thông tin chi tiết
Tên sản phẩm: Kết nối bộ dây có thể điều chỉnh Vật liệu: Hợp kim kẽm + Đồng thau + Mạ kẽm
Vật mẫu: Mẫu miễn phí Xây dựng dây thép: 7x7
Màu sắc: Màu kim loại gốc Chế độ cài đặt: tự làm lấy
Làm nổi bật:

Connect Adjustable Wire Kit

,

Sound Absorbing Panel Ceiling Hanging System

Mô tả sản phẩm

Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System

Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 0 Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 1



Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 2 Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 3 Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 4

Acoustic ceiling suspension system - Application:



Acoustical ceiling tiles or panels lay in a suspended ceiling grid and are used to improve or control the acoustics. These drop ceilings are designed to absorb, block and diffuse sound.

They are also used for these purposes: Keep outside noise out of the room, keep the noise created in the room from being heard outside of the room, or simply to improve the quality of sound in the room.

The last purpose is deemed the most important when the tiles are used in recording/sound studios and home theaters.

Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 5

Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 6

Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 4





Acoustic ceiling suspension system - Installation and Benefits:


Many acoustic or acoustical ceiling tiles can be installed in drop/suspended ceiling grids.

Suspended ceilings were originally developed as an inexpensive way to hide the wiring, plumbing, or ductwork, or to allow those features to be easily maintained.

But it quickly became clear that acoustic ceiling tiles can be used to add acoustic control to the room.



Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 1 Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 2 Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 10

Products Description:

Connect Adjustable wire hanger 2000/5000MM
Connect Covering Cup 16*17MM

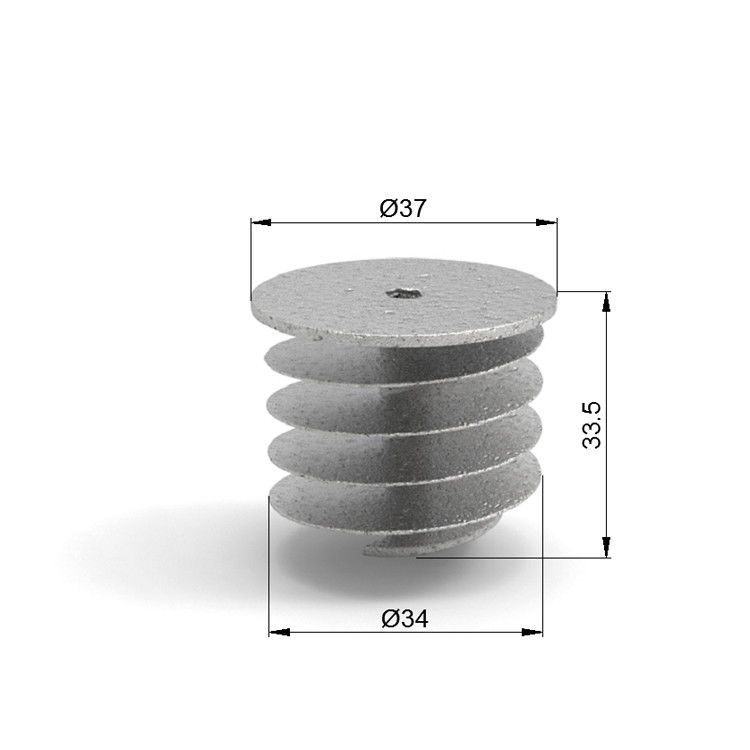

Connect Absorber anchor 2*22*48MM&37*35MM





Technical parameter:

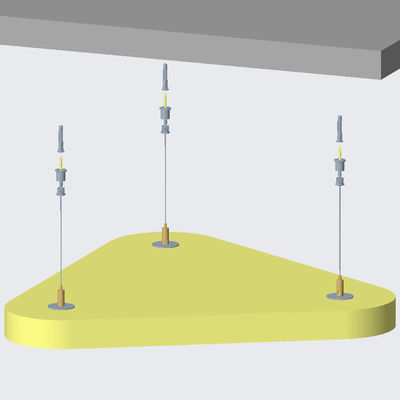

Attaching the suspension system to the structure (eg. concrete soffit):

Ensure that the structure is solid and has a load-bearing capacity of at least 10 kg.

When fixing a concrete structure, drill a hole 30 mm deep with a 6 mm diameter

drill bit. Protect the M6 thread on the top fixing dowel before tapping it into the

drilled hole. Before proceeding with the installation, check that the dowel has

expanded properly. At this stage, only the thread should be visible.

Attach the wire to the fixing points. Slide the wire into the hook, the system locks

automatically. Raise the baffle and affix the hook to the spiral anchors on both

fixing points. Attach the hooks to all of the spiral anchors. Ensure all hooks are

attached before raising the baffle to the required height



Product features:

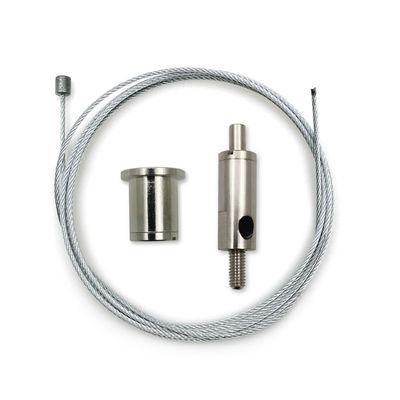

1. Screw ceiling anchor with wire


Two-part screw-on ceiling anchor with drop wire,Thimble size bullet fitting nickel finish,Ideal fixing for ceiling panels and lighting.
Ceiling anchors for attaching drop wires to plaster ceilings are neat,quick to install and supplied at low cost.
Suspended services in buildings such as acoustic panels, light fittings etc require rapid and reliable fixing systems combined with support wires. For lightweight building services applications 1.5mm wire cable can be relied upon to carry loads in excess of 10 kg per suspension point. These slender cables are both economical and unobtrusive.

Screw ceiling anchor for conventional ceilings.
For plasterboard and similar conventional ceilings which will accept a plug and screw fixing,the two-part ceiling anchor is screwed to the ceiling capturing the supplied 1m or 2m length of wire.

2. Suspension hooks self locking

Suspension hooks with self locking facility a ideal for rapid.

Installation and levelling up on site.
Slide the hook up a support wire (1.5mm dia) and it locks fast wherever it is placed.
To lower simply depress the quick release button as shown on the image. The clutch mechanism is released until the suspended item is at exactly the right height. Excess wire can then be snipped off.It is much easier to level up acoustic panels, light fittings and ceiling hung building services when the adjustment can be performed at the suspension point rather than at the ceiling.

The safe Hook has a spring catch across the mouth of the hook to prevent accidental detachment.

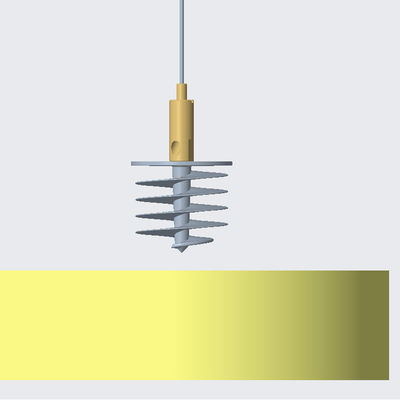

3. Suspension fitting for rockwool acoustic panels

This is a Spiral corkscrew type panel hanger for acoustic panels - type panels ,
Economic alternative to panel fixings.

Spiral anchors provide a convenient suspension point for certain types of acoustic,ceiling panels made from rockwool which will accept a screw-in corkscrew type fitment.
Acoustic ceiling installers fitting suspended acoustic panels often search for lower,cost installation components.



The spiral anchor and our associated fittings have proved a successful alternative to the manufacturers' own branded components offering significant savings.

Spiral anchor suspension fittings can be used in conjunction with our ceiling fixings,suspension cables and adjustable suspension hooks to create a low cost solution.





Technical parameter:



Attaching the suspension system to the structure (eg. concrete soffit):

Ensure that the structure is solid and has a load-bearing capacity of at least 10 kg.

When fixing a concrete structure, drill a hole 30 mm deep with a 6 mm diameter

drill bit. Protect the M6 thread on the top fixing dowel before tapping it into the

drilled hole. Before proceeding with the installation, check that the dowel has

expanded properly. At this stage, only the thread should be visible.

Attach the wire to the fixing points. Slide the wire into the hook, the system locks

automatically. Raise the baffle and affix the hook to the spiral anchors on both

fixing points. Attach the hooks to all of the spiral anchors. Ensure all hooks are

attached before raising the baffle to the required height



Product features:


1. Screw ceiling anchor with wire


Two-part screw-on ceiling anchor with drop wire,Thimble size bullet fitting nickel finish,Ideal fixing for ceiling panels and lighting.
Ceiling anchors for attaching drop wires to plaster ceilings are neat,quick to install and supplied at low cost.
Suspended services in buildings such as acoustic panels, light fittings etc require rapid and reliable fixing systems combined with support wires. For lightweight building services applications 1.5mm wire cable can be relied upon to carry loads in excess of 10 kg per suspension point. These slender cables are both economical and unobtrusive.

Screw ceiling anchor for conventional ceilings.
For plasterboard and similar conventional ceilings which will accept a plug and screw fixing,the two-part ceiling anchor is screwed to the ceiling capturing the supplied 1m or 2m length of wire.

2. Suspension hooks self locking

Suspension hooks with self locking facility a ideal for rapid.

Installation and levelling up on site.
Slide the hook up a support wire (1.5mm dia) and it locks fast wherever it is placed.
To lower simply depress the quick release button as shown on the image. The clutch mechanism is released until the suspended item is at exactly the right height. Excess wire can then be snipped off.It is much easier to level up acoustic panels, light fittings and ceiling hung building services when the adjustment can be performed at the suspension point rather than at the ceiling.

The safe Hook has a spring catch across the mouth of the hook to prevent accidental detachment.

3. Suspension fitting for rockwool acoustic panels

This is a Spiral corkscrew type panel hanger for acoustic panels - type panels ,
Economic alternative to panel fixings.

Spiral anchors provide a convenient suspension point for certain types of acoustic,ceiling panels made from rockwool which will accept a screw-in corkscrew type fitment.
Acoustic ceiling installers fitting suspended acoustic panels often search for lower,cost installation components.



The spiral anchor and our associated fittings have proved a successful alternative to the manufacturers' own branded components offering significant savings.

Spiral anchor suspension fittings can be used in conjunction with our ceiling fixings,suspension cables and adjustable suspension hooks to create a low cost solution.



Our advantage:

The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray test and tensile test at the factory to ensure the quality and safety of the products.

Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 11

Wire Rope Mate specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.

The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.

Connect Adjustable Wire Kit Sound Absorbing Panel Ceiling Hanging System 12





Company Profile

Dongguan Wire Rope Mate Hardware Co., Limited

Established in April 10,2009, Dongguan Wire Rope Mate Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of grippers, wire, swivels, rocker arm ,aluminum reflectors, ceiling attachment, suspension kits and assembly tool etc, wildly used in construction industry, lighting, display industry and so on. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We are located in Chang An town, Dong Guan city, with convenient transportation access .Covering an area of more than 3000 square meters, we now have over 150 employees, an annual sales figure that exceeds USD 20 million, and are currently exporting 80% of our production to Europe, USA, Canada, Australia and India etc.
Quality is our life. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Our company has passed the ISO9001-2015 quality certification in 2020.We are looking forward to forming successful business relationships with new clients around the world by our excellent quality, reasonable price and best service. Welcome to our company.
